Switch_Automatic Section Switch_Daijin Elesys

#Keywords:
ACB. ATS, AISS, LBS, Switch Gear, construction materials, switch, acb, circuit breaker, load break switch, auto transfer switch, transfer switch, automatic transfer switch, generator transfer switch


#Company Introduction
Daijin Elesyshas secured product reliability through continuous technology development and quality control based on long-accumulated technology and experates the highest value of ELESYS.

*Main Products

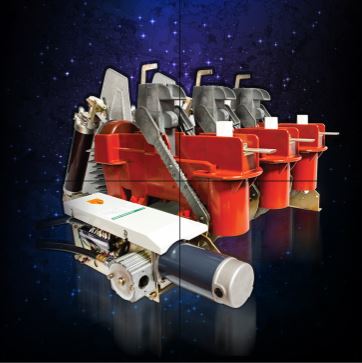

1. A.S.S [Automatic Section Switch]Automatic Section Switch <A.S.S>
(+) Technical Detail:
- Overcurrent Trip Feature
It operates ±10% min, current trip and from 150% of min current trip, it maintains for 3sec, follow by special curve.
- Overcurrent Lock System
If the Fault Current Trip is over 800A, the switch is locked autumatically and operates the Arc Quencing Trip for protection.
- Inrush Current Restrain Feature
About inrush current generated ash abscisic not recognized as a fault current of the line 0.5sec. Or 1.0sec. Depending on the setting delays the tripping.
- Arc Quenching Trip Feature
Ensure coordination and operation of the order of protection or cream can be operated after the fault current is blocked by the choices protection against fault current is more than the current Lock (800A) it has an elastically charged trip functions.
- Malfunction due to Inrush Current Protection Feature
Due to the failure of other suyongga or supply side line during Pick protective device is turned potential protection by the and the counting function to prevent malfunction due to inrush current track occurs when reactivation by determining the presence or absence of the previous fault current to be voltage-free when operating for the inrush current occurring is to prevent over the coefficient function.

- URL: http://www.daijinelec.com/ass/introduction.html

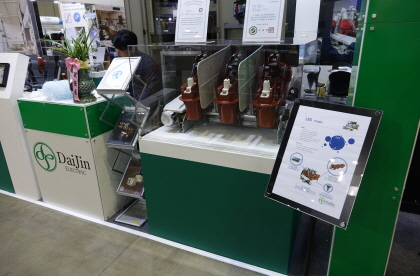

2. L.B.S [Load Break Switch]
Load Break Switch <L.B.S>
(+) Technical Detail:
- Overcurrent Trip Feature
It operates ±10% min, current trip and from 150% of min current trip, it maintains for 3sec, follow by special curve.
- Overcurrent Lock System
If the Fault Current Trip is over 800A, the switch is locked autumatically and operates the Arc Quencing Trip for protection.
- Inrush Current Restrain Feature
About inrush current generated ash abscisic not recognized as a fault current of the line 0.5sec. Or 1.0sec. Depending on the setting delays the tripping.
- Arc Quenching Trip Feature
Ensure coordination and operation of the order of protection or cream can be operated after the fault current is blocked by the choices protection against fault current is more than the current Lock (800A) it has an elastically charged trip functions.
- Malfunction due to Inrush Current Protection Feature
Due to the failure of other suyongga or supply side line during Pick protective device is turned potential protection by the and the counting function to prevent malfunction due to inrush current track occurs when reactivation by determining the presence or absence of the previous fault current to be voltage-free when operating for the inrush current occurring is to prevent over the coefficient function.

-URL: http://www.daijinelec.com/lbs/introduction.html

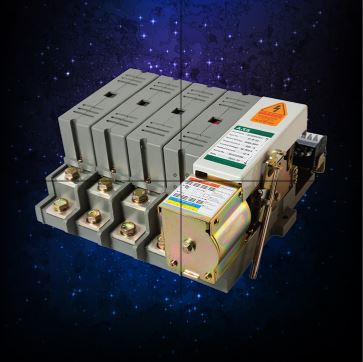

3. A.T.S [Automatic Transfer Switch]
Automatic Transfer Switch <A.T.S>
(+) Technical Detail:
The confrontation Electric Co., Ltd. is a think customer satisfaction first.
ATS is compared to other models boast the best technologies to maximize functionality and minimize the size.
In addition, we have designed the accessories and installation methods to be used in accordance with the ATS customers more easily.

-URL: http://www.daijinelec.com/ats/introduction.html

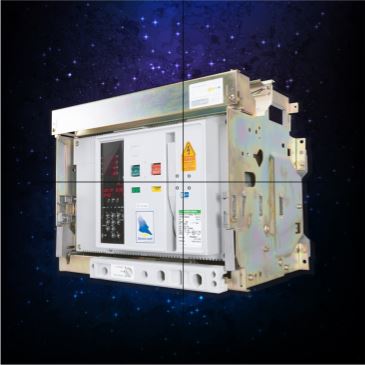

4. A.C.B [Air Circuit Breaker]
Air Circuit Breaker <A.C.B>
(+) Technical Detail:
Air Circuit Breaker, Breaker, Switch
Improve the safety of the two insulated-accessory mounting, easy replacement
Daijin Elesys meets your demands for high breaking capacity, and various features. Up to 6300A, ACB provides many different full line-up frames. Daijin's ACBs are more compact to optimized volume panel.
Desides, ACB is fully designed for customers' satisfaction to friendly use the accessories and connecting methods. Daijin Elesys ACB provides total solutions with an advanced trip relay for measurement, diagnosis, analysis and communication as well as protective functions for absolute protective coordination and electric power monitoring system.

-URL: http://www.daijinelec.com/acb/introduction.html

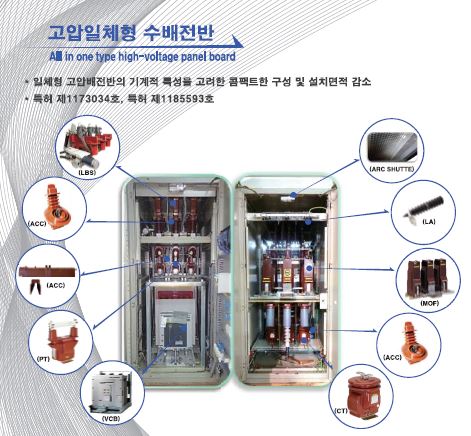

5. switch gear
switch gear
(+) Technical Detail:
-Standard: 24kV, 630/1,250A, 12.5/25kA
-Configuration: LBS – MOF/PT – VCB
-Size: 1,100(w)ⅹ2,550(h)ⅹ2,300(d) mm
-Specialized insulation performance and arc cooling quenching method


*Catalog:
http://prokcssmedia.blob.core.windows.net/sys-master-images/h7f/h5b/8820451016734/KR065544_6745.pdf

*Video:
https://youtu.be/sh0cj-Rx_iQ
