camera and modules_Hieltec Co., Ltd

# Keywords:
backup camera, rear view camera, wireless backup camera, backup camera system, aftermarket backup camera, car reverse camera, backup camera kit, rear camera, car rear view camera, car backup camera, best backup camera, wireless rear view camera, reverse camera for car, rear view mirror camera, wireless backup camera system, backup camera for car, rear camera for car, wireless reversing camera, rv backup camera

# Company Introduction:
We have been actively engaged in designing, manufacturing and constructing various cameras and modules for almost all indu for cars and has specialized technology in that area. We have been exporting cameras for cars to Japan since 2009, and are currently focusing on manufacturing and marketing of cameras for trucks, a product developed in 2013. It is currently supplied to Hyundai Motors and is installed on cargo truck (named porter 1). We have been keeping an exceptional reputation and performance record for finished products and services provided to our customers around the world.

#Main product : various cameras and modules

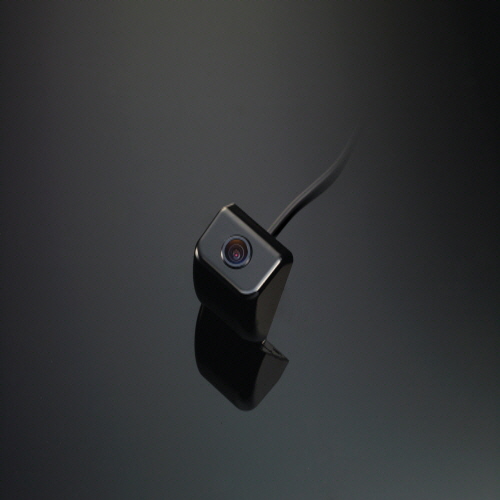

(1)HCM-550
vehicle camera <HCM-550>
* For passengers vehicles
* This product is being supplied to France
+ Technical Description:
- 1/4” CMOS SENSOR
- High sensitivity & high resolution : 300,000 Pixels
- Weather resistant Moisture proof & water proof (IP 67)
- Wide viewing angle : Angel : D159°, H 120°, V 88°
- Superior temperature durability : -30°C ~ 70°C
- 1 LUX under minimum illumination
- 1.0Vp-p Composite video out 75Ω Load
- Selectable display mirror / normal view
- 12 Volt DC operation
- Made of Zinc
(2)HCM-700N
vehicle camera <HCM-700N>
* For passengers vehicles
* This product is being supplied to Japan
- Super Ultra compact size camera : W 23 x D23 x H25 mm •High quality 1/4” CMOS image senor
- High sensitivity & high resolution : 380,000 Pixels
- Weather resistant Moisture proof & water proof (IP 67)
- Wide viewing angle : D159°, H 130°, V 98°
- Superior temperature durability : -30°C ~ 70°C
- Superior voltage durability : power unit included
- Easy to install bracket.
- 1 LUX under minimum illumination
- 1.0 Vp-p Composite video out 75Ω Load
- 12 Volt DC operation
- Made of Aluminum
(3) HCR-100IR
vehicle camera <HCR-100IR>
* For commercial vehicles
* Perfect water and vibration resistance
based on IP 69
* Black / white image
* This product is being supplied to Doosan
Heavy Group
-Rating Voltage : DC12V~24V
- Operating Voltage : DC 5V~38V
- Consumption Current : 1.5W (DC12V)
-Image Sensor : “ISHCCD” 1/3” –Type Color CCD -Lens : brightness F#2.0
-Effective Pixels : 520,000pixels 1020(horizontal) x 507(vertical) -Resolution(horizontal) : 330TV over(middle part) -Illumination range : 0.1Lx ~100,000 Lx
-Viewing Angel : 120 °(diagonal), 90 °(horizontal), 65 °(vertical)
-Video Output : CVBS(NTSC)
-Video Output Impedance : 75 Ω(1vp-p)
-Operating Temp(camera body) : -30°C ~ +85°C
-Storage Temp (camera body) : -40°C ~ +90 °C
-Water Proof : IP69 Certification
-Dimension (camera body) : (WxDxH) 79x44x44mm

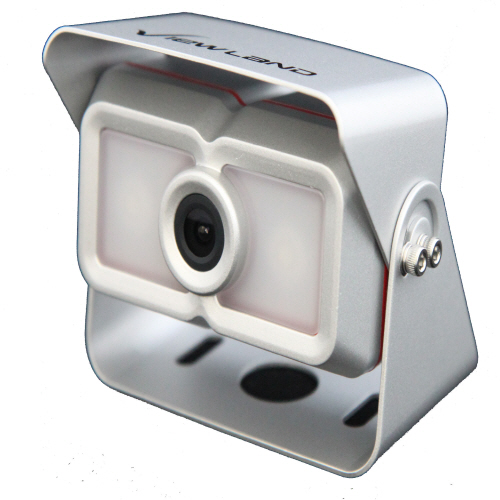

(4)HCR-100PL
vehicle camera <HCR-100PL>
* For commercial vehicles
* Perfect water and vibration resistance
based on IP 69
* Excellent Color Image at night
* This product is being supplied to Hyundai Motor, Scania
- Rating Voltage : DC12V~24V
- Operating Voltage : DC 5V~38V
- Consumption Current : 1.5W (DC12V)
- Image Sensor : “ISHCCD” 1/3” –Type Color CCD
- Lens : brightness F#2.0
- Effective Pixels : 520,000pixels 1020(horizontal) x 507(vertical)
- Resolution(horizontal) : 330TV over(middle part)
- llumination range : 0.1Lx ~100,000 Lx
- Viewing Angel : 120 °(diagonal), 90 °(horizontal), 65 °(vertical)
- Video Output : CVBS(NTSC) ▪Video Output Impedance : 75 Ω(1vp-p)
- Operating Temp(camera body) : -30°C ~ +85°C
- Storage Temp (camera body) : -40°C ~ +90 °C
-Water Proof : IP69 Certification
-Dimention (camera body) : (WxDxH) 79x44x44mm

(5)HCW -100
vehicle camera <HCW -100>
* For commercial vehicles
* Wireless system
* Integration Monitor
* Simple and easy installation
* This product is being supplied to domestic
after market

#CATALOG:
http://prokcssmedia.blob.core.windows.net/sys-master-images/hb3/h2c/9218597322782/HIELTEC.pdf

#YOUTUBE
https://youtu.be/lASqjXGhCX0
